REMI ‘KR Series Flame Proof Motors
POWER 0.18kW 11kW
SYN. RPM 3000 / 1500 / 1000 / 750 |
| |
 |
REMI ‘ECR Series Single Phase (230 V / 50 Hz)
Capacitor Start & Run (CR) Motors
POWER 0.09 kW 1.5 kW
SYN. RPM 3000 / 1500 |
| |
 |

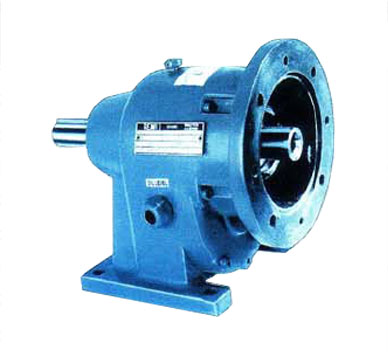

REMI ‘NZG Series
Mount on Gear Box
POWER 0.12kW ¨C 11kW
SYN.
Ratio: 3.5 45
Suitable for mounting
IEC Frame Motors B5 Type
|
| |
 |
REMI ‘KER Series Standard Three Phase Motor
POWER 0.09kW ¨C 30kW
SYN. RPM 3000 / 1500 / 1000 / 750 |
| |
 |
REMI ‘NZ Series
Helical Inline Integral Geared Motors
POWER 0.12kW ¨C 30kW
RPM 1.5 / 500 |
| |
|
FLP Motors
Suitable for GAS GROUP, I, IIA, IIB
Approved by Central Mining Research Station (CMRI) Dhanbad
Approved by Directorate General Factory Advice Services &Labour Institute (DGFASLI) Mumbai
Approved by Bureau of Indian Standards (BIS)
|
| |
|
STD Motors
High Eff Motors as per IS 12615
Low Watt loss high grade CRNGO
German ‘VEM design of stamping
Special modified wires for ‘F class insulation
|
| |
|
Single Phase Motors
Without Centrifugal Switch, therefore practically maintenance free
Compact Capacitor Run Motor
Suitable for high starting torque applications, confirm with REMI
|
| |
 |
Gear Box
Any IEC frame motor can be coupled
Gear design from ‘STEPHAN Germany
Gear manufactured as per DIN standard
‘Block / ‘Unicase design of gear housing
|
| |
|
Geared Motors
Gears manufactured as per DIN standards
Gear design from ‘STEPHAN Germany
‘Block / ‘Unicase design of gear housing
High power to weight ratio, as Integral Motors
High precision machines used only
|
| |
|
STD, Three Phase Motor
POWER 0.18kW ¨C 11kW
SYN.
RPM 3000 / 1500 / 1000 / 750 |
| |
|
Flame Proof Motor
Frame: 63-160
KW Range: 0.12 -11
RPM Range: 3000, 1500, 1000 & 750
|
| |
|
Single Phase Motor
Frame: 63-100
KW Range: 0.09 -1.5
RPM Range: 3000 & 1500
|
| |
|
Helical Geared Motor
Frame: NZA-NZ10
KW Range: 0.12-30
RPM Range: 1.5-500
|
| |
|
Dual Speed Motor
Frame: 71-180
KW Range: 0.14/0.25 10.5/12.6
RPM Range: 750/1500, 750/3000, 1000/1500, 1500/3000
|
| |
|
Additional
Custom built special motors
Voltage range 24 - 550 Volts
Frequency 50 or 60 Hz for fixed supply system
Motors for operation on VFD
Brake motors
|
| |
|
| |
LIST OF STANDARDS CONFIRMING REMI MOTORS |
| |
IS 325 ¨¤ Specification for 3-phase induction motors |
| |
IS 2148 ¨¤ Specification for Flame-proof motors |
| |
IS 1231 ¨¤ Dimensions of 3-phase foot mounted motors |
| |
IS 2223 ¨¤ Dimensions of 3-phase flange mounted motors |
| |
Our 3-phase motors are evaluated for ¡®CE¡¯ marking by M/s. Electronic Regional Test Laboratory (ERTL), Mumbai |
|
|
